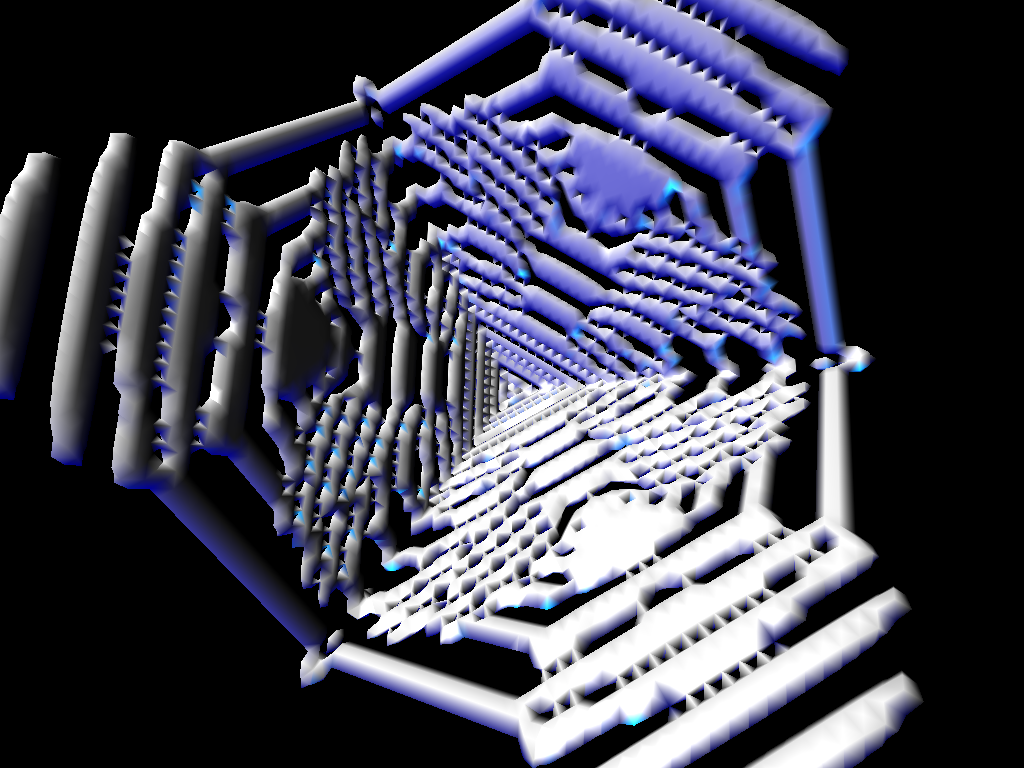

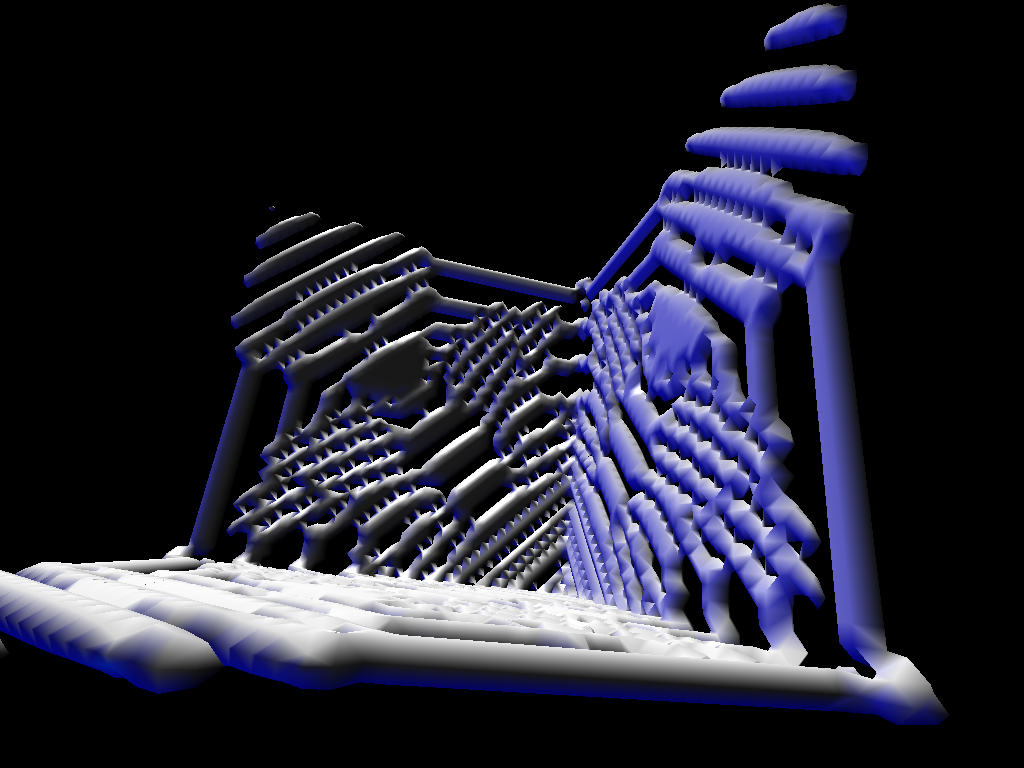

Still distracted, tried using the new (voxels->blobby) command to use the marching cubes algo in fluxus to mesh the feedback into a solid shape. The code is posted below.
(clear) ; make some voxels (define vx (build-voxels 50 50 50)) ; do the feedback (for ((i (in-range 0 40))) (with-primitive vx ; not sure what's happening here (voxels-sphere-influence (vector 0 0 0) (vector 1 1 1) 0.2) (voxels-calc-gradient) ; <- probably repeated application of this... (voxels-point-light (vector 0 0 0) (vmul (vector 1 1 1) 0.5)))) ; <- and then this does the trick ; make a blobby from the resulting voxels (define bb (voxels->blobby vx)) (destroy vx) ; dont need the voxels anymore ; convert to polygons (define pb (with-state (scale 5) (blobby->poly bb))) (destroy bb) ; don't need the blobby any more ; calculate normals and make shiny (with-primitive pb (recalc-normals 1) (shinyness 50) (specular (vector 1 1 1))) ; slap on some lights (light-diffuse 0 (vector 0.1 0.1 0.1)) (light-specular 0 (vector 0 0 0)) (let ((l (make-light 'point 'free))) (light-diffuse l (vector 1 1 1)) (light-position l (vector 0 30 10)) (light-specular l (vector 1 1 1))) (let ((l (make-light 'point 'free))) (light-diffuse l (vector 0 0 0.6)) (light-position l (vector 0 -50 50)) (light-specular l (vector 0 1 1))) (clear-colour 0.5)
